DVC1000

￭DVC1000 Two-Channel Voltage- Current Clamp

For the study of epithelial tissues
Operate in five modes: voltage clamp, amplify, current clamp, timer, and remote

Features

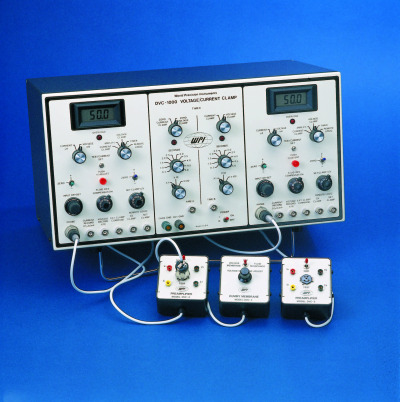

WPI’s DVC-1000 Two-Channel Voltage/Current Clamp is well-known and widely used for studying epithelial tissues. Each DVC-1000 consists of two separate clamp instruments, one for clamping a control tissue, another for clamping a test tissue. This dual clamp technique lets you monitor changes in membrane permeability as a function of voltage or applied chemical agents. Either clamp unit operates in five modes. Voltage clamp: Clamps the tissue voltage to a given level and displays the current required to maintain that level. Amplify: Shows the potential difference between the two voltage electrodes. Current clamp: Lets you deliver a constant current between the two current electrodes while simultaneously monitoring voltage changes at the tissue. Timer: Functions in either current clamp or voltage clamp experiments, letting you cycle automatically between zero clamp and a preset clamp level. Remote: Allows you to control clamp operation from a computer or other logic level source. Small preamplifiers (included) which mount close to the chamber let you connect to voltage and current electrodes without long cables or agar bridges. DVC-1000 also features a unique ±100 V power supply capable of delivering up to 1 mA of clamp current. Each clamp lets you correct for input offset voltages and fluid resistance error.

Includes:

Two DVC3 preamps and one DVC2 dummy membrane.

Specifications

PROBES: INPUT IMPEDANCE 10^12 ohm

PROBES: LEAKAGE CURRENT 100pA max

PROBES: MAXIMUM INPUT VOLTAGE 10V

VOLTAGE CLAMP: CLAMP VOLTAGE RANGE: SET CLAMP POT ±100mV

VOLTAGE CLAMP: CLAMP VOLTAGE RANGE: EXTERNAL COMMAND ±1V

VOLTAGE CLAMP: CLAMP VOLTAGE RANGE: COMMAND FACTOR 10mV/mV

VOLTAGE CLAMP: CLAMP VOLTAGE RANGE: MAX. CLAMP CURRENT ±1mA

CURRENT CLAMP: CLAMP CURRENT RANGE: SET CLAMP POT ±1mA

CURRENT CLAMP: CLAMP CURRENT RANGE: EXTERNAL COMMAND ±1mA

CURRENT CLAMP: CLAMP CURRENT RANGE: COMMAND FACTOR 1mV/uA

CURRENT CLAMP: CLAMP CURRENT RANGE: COMPLIANCE ±100V

INPUT OFFSET RANGE ±130mV

FLUID RESISTANCE: COMPENSATION RANGE 0-1000 ohm

TEST CURRENT 10uA to 180uA adjustable

OUTPUT RESISTANCE 10ohm

TIMER RANGE 500ms to 500s each side

LCD METER: TYPE 3.5 digits with Noiselok

LCD METER: MAX. READING 2000uA, 200mV

POWER REQUIREMENTS 95-135V or 220-240V, 50/60Hz

DIMENSIONS 17 x 8.75 x 9.5 in. (43 x 22 x 24 cm)

SHIPPING WEIGHT 21 lb (9.5 kg)
